A, customer requirements:
Wooden door: PE film fully enclosed packaging
Size: 2.4 m * 1 m * 80 mm
Weight: 25 kg/fan
Production: 6 PCS/min
Customer: Malaysia
Three phase voltage: 415 v 50 hz

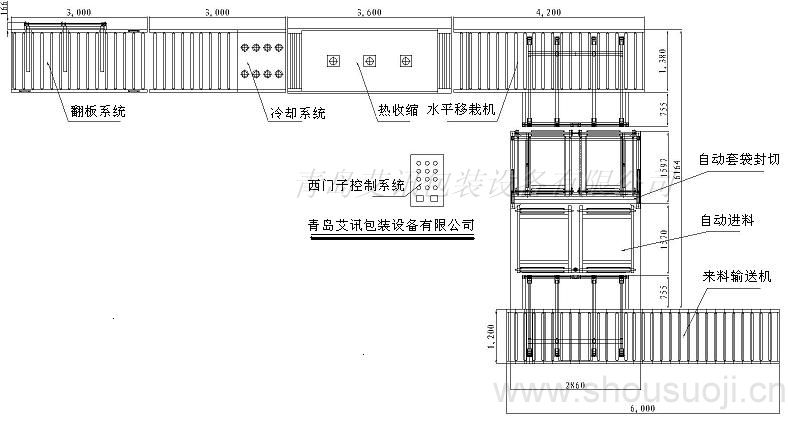

Second, the description of the system:
This system adopts the stretched straight into the sleeve sealing and cutting machine and long furnace heat shrink packaging machine, automatic feeding system, automatic positioning, bagging sealing and cutting (crosscutting and the cutting), also known as the three edge sealing and automatic heat shrink packaging.
This system is for large packaging to develop a new type of automatic sealing and cutting machine;Using upper and lower two membrane, membrane and product synchronous action, in the product forward at the same time, sealing and cutting machine edge sealing device is started to heat sealing of up and down two film, sealing effect and the strength is very good.Suitable for heavy and large goods packaging, packaging length is unlimited, unlimited length.
Three, the system features:
L adopts double sealing seal product method, sealing strong, the effect is good
L electronic touch-screen, OMRON program controller, the realization of mechanical and electronic integration
L suitable for packaging of heavy and large items
L suitable for 0.03 ~ 0.08 mm thickness of the new PE shrink film
L the sealing line can be adjusted according to the height of products.
L packaging with unlimited length limit, can be infinite
L can according to customer's need to increase the transmission, the output
L adopts international advanced components
L is equipped with imported detection photoelectric, horizontal, vertical, testing each a set
L stainless steel heating tube
L transmission speed is adjustable
L iron shell, safe operation
L chain conveyor mesh belt conveyor and optional
L suitable for POF, Pe shrink film

Four, the main technical indicators:
L maximum membrane width: 2.6 m
Size: l shrinkage furnace W1200 L3000 * * H200mm
L seal cutter length: 2.7 m
L conveyor line width: 1.3 m
L transportation speed: 10 m/min
L motor: the SEW (Germany)
L: PLC SIEMENS (SIEMENS of Germany)

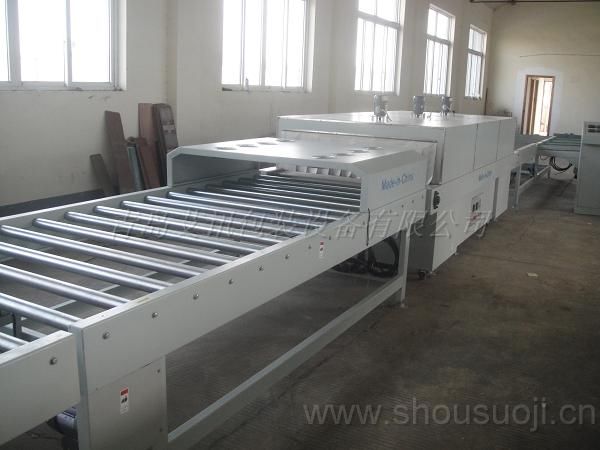

Five, the real machine images:
