A, customer requirements:
Specification: the floor length is 1000 mm, width 80 ~ 80 mm, 15 mm height, it is recommended to use the product
Second, the system summary:

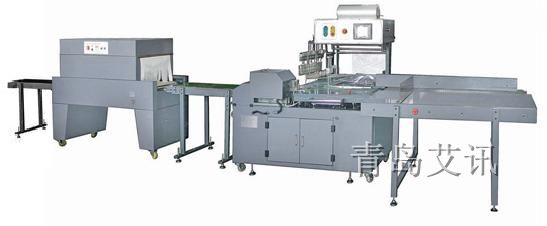

ZBJ - 350 automatic packing sealing and cutting machine is one of the telecommunications company independent patent products of Qingdao Ausense.This machine is mainly composed of automatic sealing and cutting machine, heat shrink packaging machine, automatic conveyor line, automatic electric control system four or five components.The machine's working process is automatically controlled by PLC programmable logic controller, sealing time, cooling time, transmission speed are adjustable, is the current domestic advanced a fully automatic packaging equipment.
Scope of application: this machine is suitable for longer articles, such as floor, wallpaper, etc.The sealing film using pof film.

 Three.Product features:
L Germany Siemens PLC control, the system more reliable, more stable


L Taiwan human-machine color touch screen, the operation is simple and convenient
L automatic into film, automatic feeding, automatic control
L maximum working efficiency can be to 40 m/min, with high work efficiency, suitable for large production of product packaging
L the machine adopts flange type sealing, suitable for long heat shrink packaging products
L used in circulating heating thermal shrinkage, shrinkage furnace temperature.
L double fan control, heat shrink packaging temperature more even.Beautiful packaging effect.

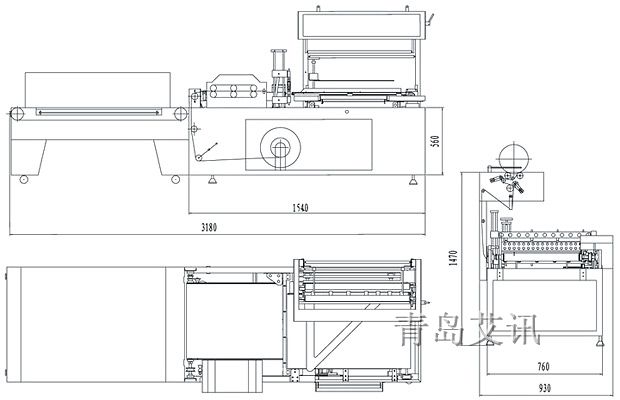

Four, the core component of product plan sketch (automatic heat shrink packaging machine + automatic L sealing and cutting machine) :


Five, the main technical indicators:



model	BZJ-350
sealing and cutting form	Piping totally enclosed
power supply	380V/50-60Hz/3phase
packaging high	≤125mm
packaging width	≤350mm
packaging size	width+height≤400mm
packaging length	unlimited
packaging speed	depends on the length of product
using film	POF folded film﹑PE folded film
max.film	530mm（width）×280mm（external dia）
total power	8.5kW
furnace size	1200mm（L），furnace mouth450（W）×220（H）mm
conveyor speed	adjustable，40 meter/min
conveyor strap	Chain conveyor strap, roller sets of silicone tube
platform height	750-820mm
air pressure	≤0.5MPa(5 bar)
P  L  C	SIEMENS S7
sealing and cutting system	Constant temperature heating system, easy to change the cutter, sealing and cutting no smoke, no smell
operation interface	Eview Color touch screen
main material	Carbon steel welded
machine dimension	L7000mm*W930mm*H1470mm
total weight	600kg
