A, customer requirements description:
L packing materials: foam insulation board
L specification: monolithic W600 L1200 * * H60mm 1.5 kg 10 pieces of a pack of: W600 L1200 * * H600mm 15 kg
L production: 4 bags/min
L packaging requirements: fully automatic cuff sack packaging.
Product introduction:
ST160 / z + SM - 70 140/70 (PE) automatic sealing and cutting sleeve type shrinking machine for Qingdao Ausense company independent research and development products, used for foam board products (W600 L1200 * * H600MM) PE film sleeve heat shrink packaging;Packaging process, the product from feed conveyor line automatic feeder, automatic set of membrane sealing and cutting, and then automatically to the shrink machine thermal contraction, then the cooling output;Packaging process with automatic feeder, covering film, sealing and cutting, heat shrink, cooling stereotypes, output, and other functions, automated packaging.The core products for the sleeve.
Three, equipment (is made up of four parts:
1, 1 m feed conveyor line;
2, ST - 16070 - z automatic sleeve type FengQieJi;
3, SM - 14070 (PE) shrink machine;
4, 2 meters discharging conveyor line;
Four, the technical parameters:
1, the feed conveyor line (motivation) :
Conveyor line the total length: 1000 mm
2, ST - 16070 - z automatic FengQieJi cuff type:
Power supply and power: 3 ф 380 v, 50 hz 5 kw
Use an external source (kg/cm squared) : 6.0 to 8.0
The range of the film: monolithic PE shrinkable film
3, SM - 14070 (PE) shrink machine:
Power supply and power: 3 ф 380 v, 50 hz 40 kw
The range of the film, PE shrink film
4, discharge conveyor line (no force) :
Conveyor line length: 2000 mm
Five, automatic heat sleeve heat shrink packaging machine appearance size effect：

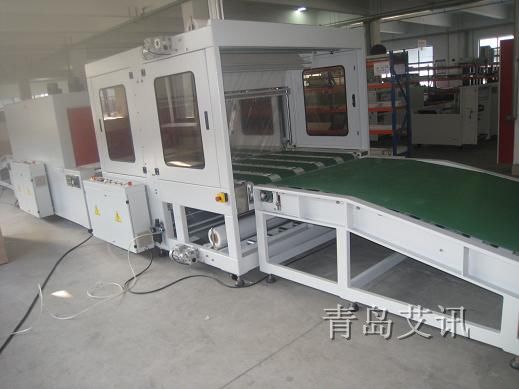

Six, sleeve wrapping machine physical image:

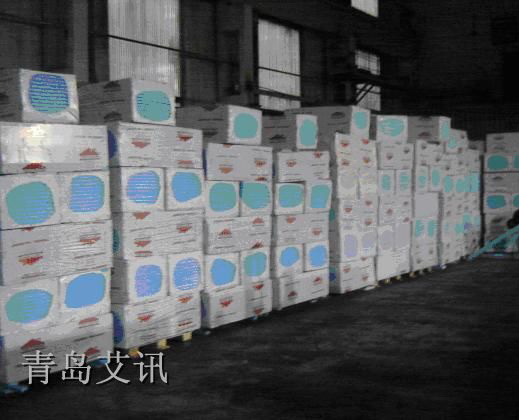

Seven, heat shrink packaging automatic sleeve effect pictures:
