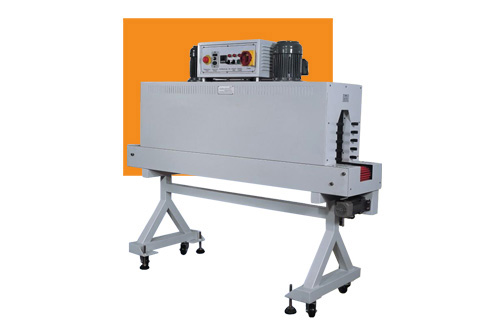

Label shrink machine

Label shrink machine
[CAD尺寸下载][PDF下载]
Features
SM-1230 not only can label shrink machine shrink machine bottle mouth of with thick shaft type transmission,ensure smooth operation object,convenient production connections,improve production officiency.applicable to food,medicine,cosmetic,pesticides and other industries of glass bottles,plastic bottles,cups and other container labels contraction.
product features：
imported components,to ensure the stability of the equipment.
the machine is equipped with conveyor line can work independently.
sectional contral and the furnace chamber system.
Parameter
technical index

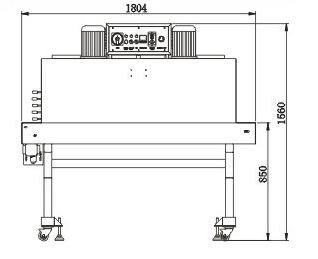

Machine size L*W*H（mm）
1804*600*1560
Oven size L*W*H（mm）
1500*120*300
Max.packaging size cnjugate*high（mm）
Φ100*280
Packaging speed（pcs/hour）
8000－12000
Net weight（kg）
210
Power（kw）
15
Power supply
3PH 380V/50HZ
Applicable film
POF,PVC.PET
Other

shrink oven can be customized
conveyor line matching
