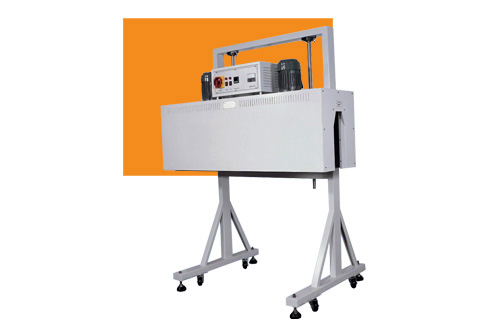

Label shrink machine(no pipeline)

Label shrink machine(no pipeline)
Features

SM-1230X label shrink machine retractable bottle,bottle,general need to not shrink the bottle. SM-1230X label shrink machine adopt the conveyor design and free height adjustment for the furnace cavity,can be used with all kingds of high water. the machine is mainly for bottle shape,cylindrcial,barrel goblet product label shrinkage is mainly used in medicine,cosmetic,spices,agricultural chemicals,food and other industries.products features：
shrink furnace heght can be adjustable
Imported components, to ensure the stability of the equipment
two powerful wind motor ensure wind enough cycle.

Parameter
machine sizeL*W*H（mm）
1603*1009*2056
oven sizeL*W*H（mm）
1500*150*400
max.packaging size diameter*high（mm）
Φ120*350
packaging speed（pcs/hour）
8000－12000
net weight（kg）
250
power（kw）
18
power supply
3PH 380V/50HZ
applicable film
POF,PVC.PET
Other
shrinkage furnace size can be customized
Transmission line is optional
