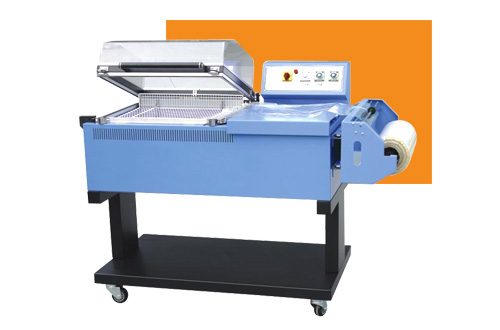

FM-5540 combination shrink machine

FM-5540 combination shrink machine
[PDF下载]
Features

 combined to POF heat shrink packaging machine,PVC shrink film,sealing and contraction to a body,just a personal work can finish sealing contraction homework,can clearly see the machinetransparent glass glue cap can clearly see the sealing process,contraction,before and after moving workbench is suitable for all kinds of packing materials.should be widely in food,beverage,medicine,hardware,cosmetics,toys,plastic,electronics,audio and video product,etc.
 product features：
equipped with a special wheel roller pinhole equipment,fully to air in the membrane.
slide bracket of film,can be placed all kinds of shrink film,any adjustments.
PPS and heat-resistant material knife holder,can with stand the long-term use of the test.
adjust according to the packing size tangent height.
equipped with a lock at the bottom of the caster wheel,can according to the need to move to locate on the machine.

Parameter
Power supply
110，220－240V/50-60HZ
Powre
4.0kw
Max.Packaging size
L550*W400*H300
Max.Sealing size
L550*W400
Working efficiency
500-800pcs/h
Machine size
1360*670*1080
Machine weight
125kg
Shrink film
POF.PVC.
Other
this series has a veriety of specifications is optional.
