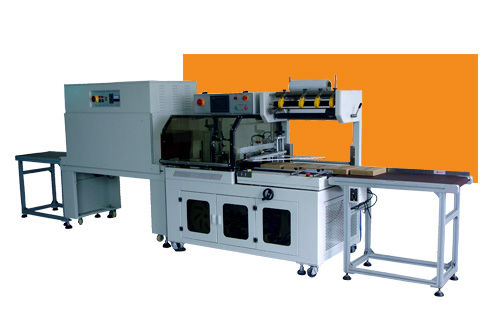

Economical edge sealing machine

Economical edge sealing machine
[CAD尺寸下载][PDF下载]
Features
FL-5545+BSD4525 economical automatic edge sealing shrink packaging machine was developed according to the market customers different requirements of a medium speed type edge sealing machine.it to pof folded membrane for packaging material.adopting photoelectric products for alltomatic detection,automatic unmanned packaging high efficiency,suitable for packing various kinds of product of different sizes and shape.
product features:
① using imported accessories,ensure the machine high speed stability
② highly adaptable packaging high-speed sealing line
③ lateral sealing and cutting knife driven by vertical system to ensure the sealing line straight and strong.
④ wide packaging different products in different size
⑤ use sealing side design product packing lengt is unlimited
⑥ high packing capaclty up to 40 per minute
Parameter
Model
edge sealing machine（GPL-5545C）
shrink machine（BSD4525A）
Machine size
1650*900*1550mm
1200*690*1200mmm
shrink furnace size
        /
1000*450*250mm
Max.packaging size
L(no limit)*W+H≤450mm(H≤150)mm
500*450*
Sealing bar length
490mm
     /
Packaging speed
20~40pcs/min
15~20pcs/min
Net weight
450kg
120kg
Power
3kw
15kw
Power supply
3HP 380V 50HZ
220-240V/50-60H
Extermal gas source
6~8kg/cm²
/
applicable film
POF,PVC,PP
