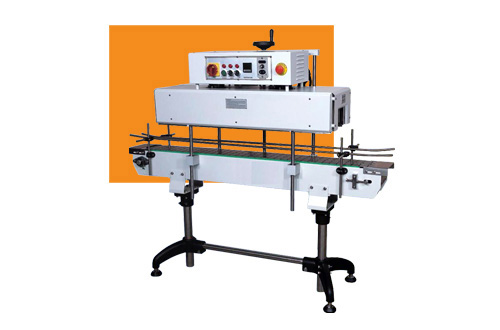

Bottle shrink machine

Bottle shrink machine
[CAD尺寸下载][PDF下载]
Features
SM-1540 bottle shrink machine is affect the machine adopt double little power wind turbine, displacement and deformation will not lead to a tag,furnace high adjustable,can be applied to all kinds of bottle type SM-1540 bottle shrink machine can bw stand-alone operations also can be connected with production line operation.
products features:
imported components, the heater is made from stainless steel.
shrinkage temperature control at will, the highest temperature can reach 250 degrees
conveyor speed by electronic speed stepless speed regulation
Parameter

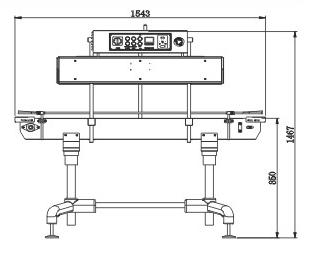

machine sizeL*W*H（mm）
1543*494*1467
oven size L*W*H（mm）
1000*150*400
max.packaging size dia*high（mm）
Φ120*400
packaging speed（pcs/hour）
8000－12000
net weight（kg）
130
power（kw）
3.5
power supply
3PH 380V/50HZ
applicable film
POF
Other
this machine can be customized
