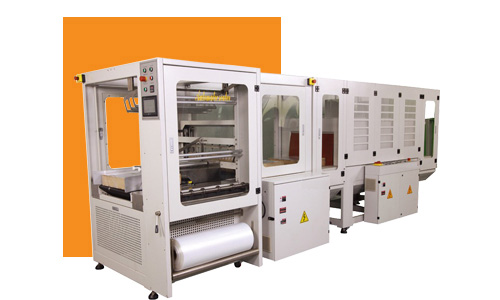

Automatic sleeve shrink machine--Fold the membrane whole sealing

Features

Fold the greatest characteristic of film type automatic cuff machine can be continuous sealing, bilateral product length is not restricted. Much longer, wider and heavier products used for PE film packaging, sealing and cutting all the machine USES electronic touch screen，“OMRON”Process control, achieve mechanical and electrical integration.Whole sealing and cutting PE closed shrinking machine high degree of automation, high flexibility, sealing line can be adjusted to any position according to the requirement, packaging production scrap film, automatically winding.
Designed for heavy and large objects
Applicable to 0.03 ~ 0.06 mm thickness of PE shrink film
Humanized operation interface, it is more convenient to use
Fully enclosed within the heating circulation, stainless steel heating tube

Parameter

model	automatic sealing and cutting machine（ST6040X）	model	heat shrink film packaging machineBSE6040A
power supply	380V/50-60HZ	power supply	380－460V/50-60HZ
sealing size	1000mm	heater power	15KW
work efficiency	3－6sets/min	conveyor speed	0-15m/min
pressure	1HP/2KW	shrink size	1800*600*400mm
sealing time	0.5~1.5S	product size	500*350mm
worktable high	850±50mm	conveyor loading	25kg
machine size	115*91*186cm	machine size	3000*950mm*1700mm
machine weight	220kg	machine weight	280kg
applicable film	PE film

Other

the captan used in floor packaging,can be customized.
