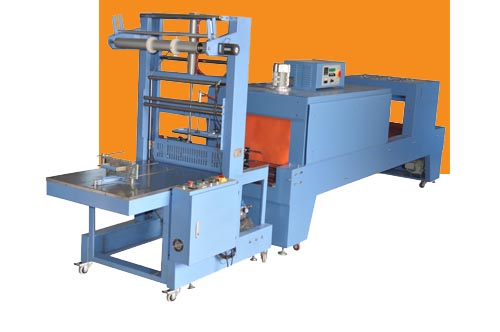

Semi-auto PE film shrink machine

Semi-auto PE film shrink machine

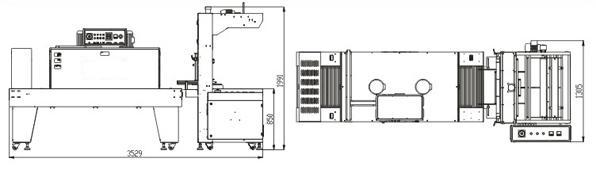

[CAD尺寸下载][PDF下载]
Features
Contraction bar sealer is a semi-automatic sleeve economical sleeve shrink machine,also is the most widely used a shrink machine，ST6040Q semi-automatic sleeve shrink machine after bar sealer automatically advance the shrink machine ,shrink packaging.the machine use a long furnace make sure disposable contraction effect is perfect.also can choose according to product packaging maching chain roller or teflon transmission system.suitable for cans, mineral water,beer,glass bottles,such as various bottled products without tap heat shrink packaging.product feature：
Adopt international advanced control components ,stable performance.
seal cutting knife with special design,perfect sealing,no crack,non-stick knife
Automatic push material,film,sealing
fully enclosed within the heating
prevent iron shell ,use more safe




Parameter
Model
BAB SEALER（ST6040Q）
Model
Heater-shrink machine BSE6040A
Power supply
220-240/50-60HZ
Power supply
380－460V/50cutting
Cutter size
L600*W400mm
Heater power
15KW
Work efficiency
3－6sets/min
Conveyor speed
0-15m/min
Air pressure
1HP/2KW
shrink size
1800*600*400mm
Cutting time
0.5~1.5S
product size
500*350mm
Worktable  high
850±50mm
Capacity
25kg
Machine size
115*91*186cm
Machine size
3000*950mm*1700mm
Machine weight
220kg
Machine weight
280kg
Applicable film
PE film
Other

Bottle device is optional，no need to manually

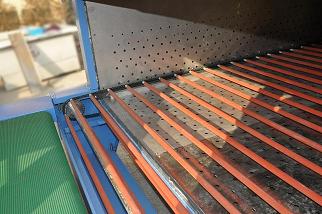

Device roller chain or teflon transmission
Machine size can customize
