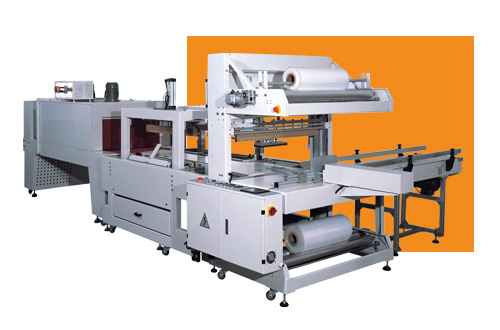

Automatic sleeve shrink machine-trilateral whole sealing

Features

Automatic trilateral whole sealing cuff is shrinking machine for large packaging to develop a new type of automatic sealing and cutting machine;using upper and lower two membrane and product synchronons action,in the product forward at the same time sealing and cutting machine edge sealing device is started to heat sealing of uo and lown two film,sealing effect and the strength is very good.suitable for heavy and large goods packaging,packaging length is unlimited.
product features:
adopt double sealing way,sealing strong,the effect is good
the electronic touch-screen,OMRON program controler
the relaization of mechanical and electronic integration
suitable for packaging of heavy and large items
suitable for use in 0.032-0.08mm thickness of the new PE shrink film.
the sealing line can be adjusted according to the height of products
packing material with unlimited length limit can be infinite
conveying,according to customers need to increase the output
adopt international advanced components
equipped with imported detection photoelectric,horizontal,lertical testing each a set
stainless steel heating tube
transmission speed is adjustable
prevent iron shell,safe optional
chain conveyor mesh strap conveyor and optional
suitable for POF/PE shrink film.

Parameter

model	automatic edge shrink machineFL6030D	heat shrink film packaging machine（GPS-5030LW）
power supply	3Φ220V /380V 50/60HZ	3Φ380V 50/60HZ
power	3kw	16kw
packaging size	W+H≤430mm,L+H≤550mm(H≤220)mm	1200*450*250mm
seal size	650*500mm	1500*500*300mm
packaging speed	20~35pcs/min	20~60pcs/min
air source	5.5kg/cm³
max.current	10A	32A
net weight	700kg	650kg
machine size	1850*1450*1410mm	2000*1100*1250mm
applicable film	POF,PVC,PP

Other

suitable for long objects,custom packaging.
