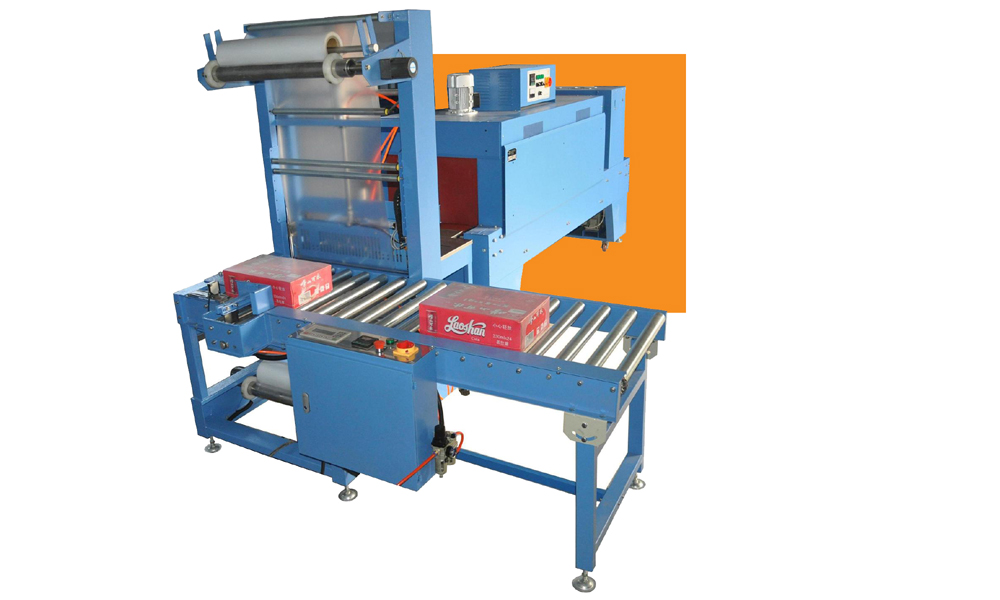

Automatic sleeve shrink machine-pallet

Features

Fully automatic tray sleeve shrinker by ST6030 AH bar sealer and BSE6040A of two parts.Mainly on a single object or paper items and design,this machine can automatic docking with the line feed,wrapping film,sealing and cutting,shrinkage,cooling stereotypes,realize unmanned operation flow.mainly suitable for the cartons,beer,beverge,mineral water,cans glass bottles,such as paper,carton packing set or single can be used if no pallet packaging automatic cuff(no tap)shrinking machine.
product features:
the introduction of interational advanced technology and craft,equipment performance is stable and realible.

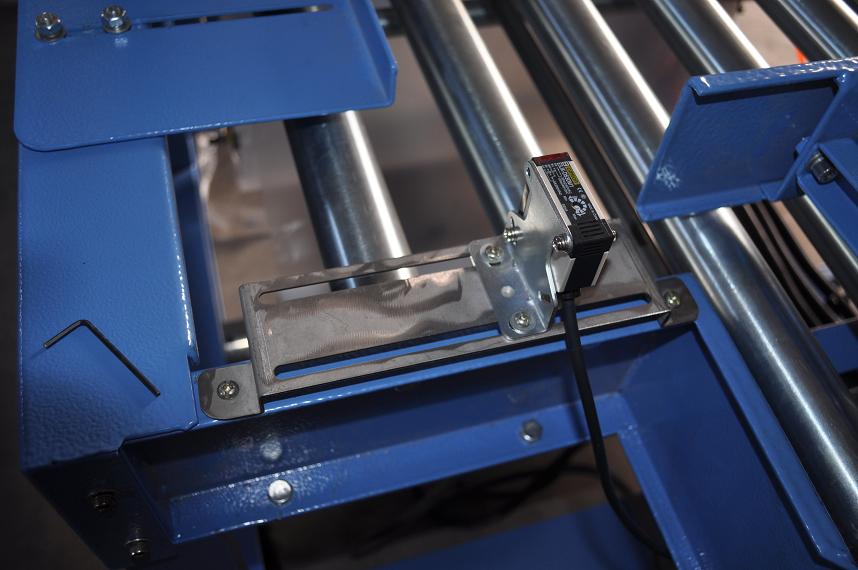

induction film feeding,which greatly reduce the wastage of the film.
digital display temperature control products,temperture accurately
stepless mechanical adjustment device,adjust the speed of the feed conveyor strap.
using OMRON “PLC” programmable controller,machine,electric integration.
using specially designed three chip seal knife,firm sealing line does't crack not easily stick knife.
feed conveyor strap can design according to the need to feed on the left or the right side the feed.

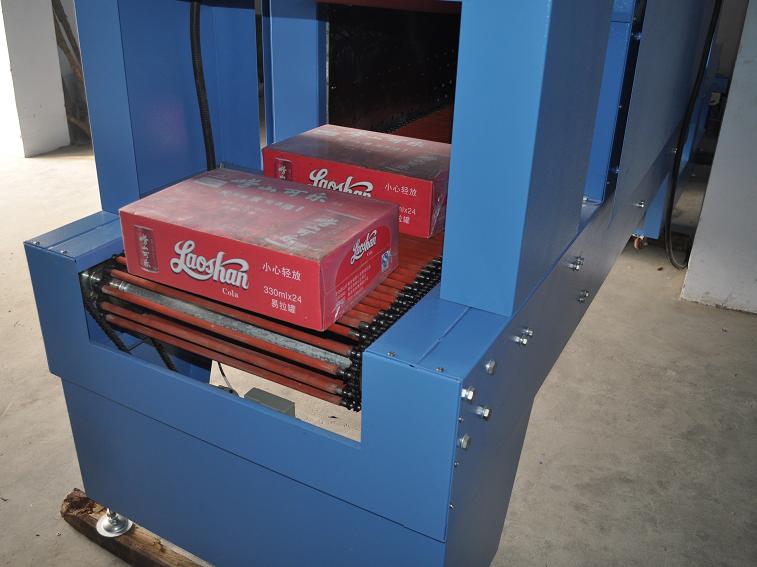

shrink machine adopts closed heating circulating,stainless steel heating tube.
conveyor speed and shrinkage temperature is adjustable.




Parameter

Model	sealing and cutting machine（ST6030A）	PE heat shrink film machine（BSE6040A）

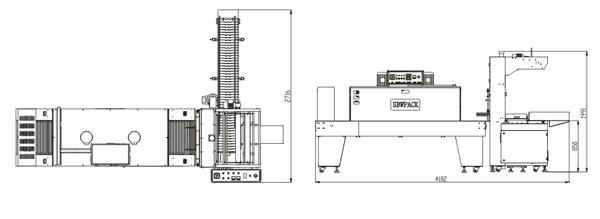

Machine size	1382*2716*1991mm	3000*950mm*1700mm
furnace size	/	1800*600*400mm
Max.packaging size	500*300*300mm	500*450*
Seal size	700mm	/
Temperature	0~200degree	0~400degree
Worktable high	850±50mm	850±50mm
Packaging speed	8~18pcs/min	15~20pcs/min
Net weight	390kg	280kg
Power	1.5kw	20kw
Power supply	3HP 380V 50HZ	3HP 380V 50HZ
External gas source	6~8kg/cm²	/
Applicable film	PE

Other

shrink furnace size is optional
can chose no tap shrinkable packing
