Automatic sleeve shrink machine-stacking

Features

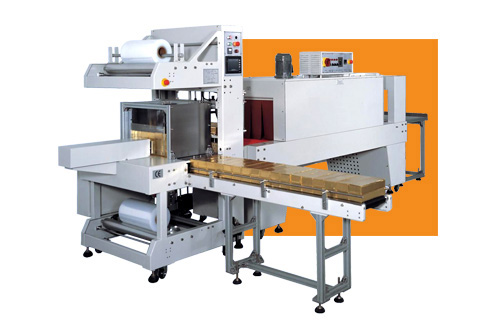

ST6030AE+BSE6040A automatic sleeve shrink machine with automatic arrangement in the process of packaging,push the crib,and other funtions,suitable for all kinds of the number of boxes of single layer or multi-layer collective no tap shrinkable packaging. the machine design with OMRON PLC programmable controler touch screen design, can according to production requirement automatically 5,3,4 layer 2pallet or a combination of line packaging.mainly applied to daily necessities,such as soap,too thpaste a collection of station of stationery,such as heat shrinkable packaging,tabacco distribution center of cigarette packaging or various shapes packaging laminated packaging.
products features：
the introduction of interational advanced technology and craft,equipment performance is stable and reliable according to the need can choose linear feed or 90 degrees of corner design.
feed the strap to lose pounds,speed,stable operation,according to the need to increase the color film.
shrink machine adopts closed heating circulating,stainless steel heating tube
conveyor speed and shrinkage temperture is adjustable

Parameter

Model	pneumatic sealing and cutting machine（ST6030AE）	heat shrink film packaging machine（BSE6040A）
Machine size	1382*2716*1991mm	3000*950mm*1700mm
furnace size	/	1800*600*400mm
Max.packaging size	400*300*300mm	500*450*
Sealing bar length	700mm	/
Temperture	0~200degree	0~400degree
Worktable high	850±50mm	850±50mm
Packaging speed	8~15pcs/min	15~20pcs/min
Net weight	600kg	280kg
Power	1.2kw	20kw
Power	3HP 380V 50HZ	3HP 380V 50HZ
External gas source	6~8kg/cm²	/
Applicable film	PE

Other

pallet institutions can be customized according to the size of the product.
