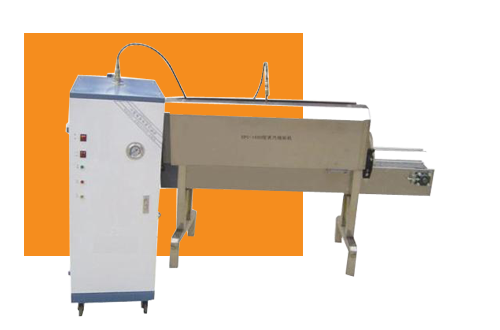

Steam shrink machine

Steam shrink machine
[PDF下载]
Features
steamlabel shrink machineUsing steam as heat source, has the speed, uniform shrinkage, no fold, adjustable power, such as shrinkage effect is perfect; Shell of the machine is made of stainless steel and heat preservation, not only save energy, and approved to international safety standards, at the bottom of the stainless steel water pans condensate, the whole machine adopts the waterproof design, convenient operation and maintenance, is widely used in mineral water, pure water, soft drinks and tea drinks and other food and beverage industry.
Parameter
machine size L*W*H
120*31*12cm
max.packaging size
310*120mm
packaging speed（pcs/hour）
8000－12000
net weight（kg）
130
conveyor loading
5kg
power（kw）
8
power supply
3PH 380V/50HZ
steam pressure
0.1Mpa
steam consumption
24Kg/H
applicable film
POF
