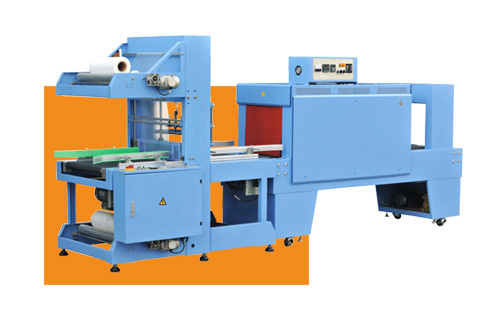

Sleeve automatic shrink machine-straight

Sleeve automatic shrink machine-straight

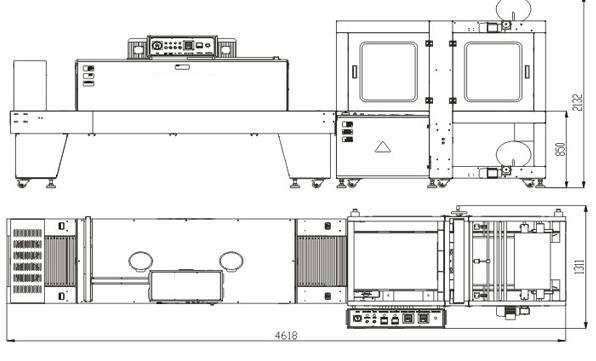

[CAD尺寸下载][PDF下载]
Features
ST6040Z sleeve automatic shrink machine adopts unique best way to desigin linear feeding packaging length without limit, for some limited space without adjusting the direction of product, and packing process is very convenient. The sleeve shrink machine can be used alone, also can clock with the production line automatic feed wrapping film,sealing and cutting contraction,cooling,finalize the desion. Unmanned operation flow. Is mainly suitable for a longer length
Parameter
Model
BAR SEALER（ST6030Z）
Heat shrink machine（BSE6040A）
Machine size
1818*1311*2132mm
3000*950mm*1700mm
Oven size
        /
1800*600*400mm
Max.packaging size
L(no limit)*300*300mm
500*450*
Cutter size
700mm
     /
Temperature
0~200degree
0~400degree
Work table of high
850±50mm
850±50mm
Packing speed
8~22pcs/min
15~20pcs/min
Net weight
500kg
280kg
Power
2kw
20kw
Power supply
3HP 380V 50HZ
3HP 380V 50HZ
Extermal air source
6~8kg/cm²
/
applicable film
PE
Other
shrink furnace heat shrink machine size can be customized according to customer cleand ,including longer,wider,higher,load,etc
