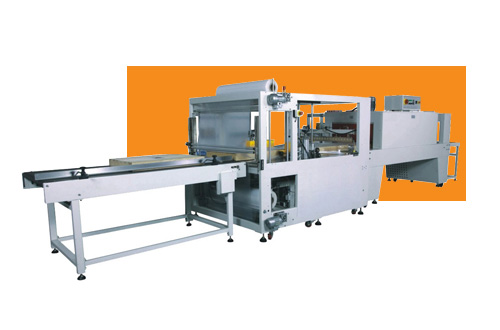

Bilateral sealing machine

Features

Bilateral sealing machine is fully automatic for large packages,the development of a new type of automatic sealing and cutting machine.using upper and lower two membrance,membrance and product synchronous avtion,in the product fordward at the same time,sealing and cutting machine edge sealing device is started to heat sealing of up and down two film,sealing effect and the strength is very good.suitable for heavy and large goods packaging,packaging length is unlimited.
product features:
adopt double seal sealing way,sealing strong,the effect is good.
the electronic touch-screen,on OMRON program controller,the realization of mechanical and electronic integration.
suitable for packaging of heavy and large items.
suitable for use in 0.03-0.08mm thickness of the new PE shrink film.
the sealing line can be adjusted according to the height of products.
packing materials with unlimited length limit can be infinite.
according to customer's need to increase the output.
adopt international advance components.
equipped with importrd detection photoelectric,horizontal,vertical,testing each a set.
stainless steel heating tube.
transmission speed is adjustable.
prevent iron shell,safe operation.
chain conveyor mesh strap conveyor and optional.
suitable for POF,PE shrink film.

Parameter

model	bilateral sealing machineFL6030D	shrink machine（GPS-5030LW）
power supply	3Φ220V /380V 50/60HZ	3Φ380V 50/60HZ
power	3kw	16kw
packing size	W+H≤430mm,L+H≤550mm(H≤220)mm	1200*450*250mm
sealing size	650*500mm	1500*500*300mm
packing speed	20~35pcs/min	20~60pcs/min
gas source	5.5kg/cm³
max.current	10A	32A
net weight	700kg	650kg
machine size	1850*1450*1410mm	2000*1100*1250mm
applicable film	POF,PVC,PP

Other

shrinkage furnace size can be customized according to the product
