Product
automatic l shrink packing machine

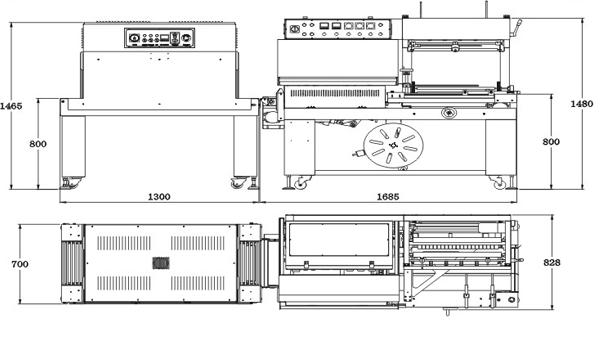

[CAD尺寸下载]
[PDF下载]- Features
- LA-4560E+BSD4525A is a Automatic shrink machine，it is now Heat Shrink Packaging Machine is in the most advanced, automatic the highest degree of a product. More match line using the device, can automatically send film, then automatic bag making, surface smooth, seal cutting film packaging, a complete heat shrinkable packaging, without manual. Full automatic L cut the shrink machine using the folded membrane as raw materials, and waste recycling. In addition, in the presence of package sizes, the automatic heat shrink packaging machine can be adjusted within a certain range, without replacement. At the same time can manually adjust the position and thermal shrinkage furnace temperature and the speed of the heat shrinkpackaging. Products are widely used in pharmaceutical, food, stationery, cosmetics, electronic products, toys, and other fields.
product feature ：
Sealing knife with dupont teflon coating dragon antisticking high-temperature alloy knife, seal will not crack, not coking and not smoke zero pollution
The machine by the Japanese mitsubishi PLC control, color man-machine interface interaction system.
Equipped with imported detection photoelectric, each a set of horizontal, vertical, detection, easy to switch to choose, for thin small packaging, can easily finish sealing homework
Automatic feeding, length can also through the electric eye, and the combination of the timer, automatic adjustment. Equipped with induction motor, automatic coiling waste
Digital display thermostat thermostat adopts original Taiwan, built-in PID function, sealing knife temperature is extremely sensitive and accurate, can be set in a random, don't have to worry about temperature and defective products, sealing knife itself with automatic protection function, effectively prevent false packaging
A complete set of machine truly connected with production line of unmanned operation
- Parameter
- modelL sealing and cutting machineLA-4560Emodelheat shrink machineBSD4525APower supply220v/50-60HZPower supply220-240V/50-60HConveryor speed0-15m/minHeater power10KWSeal aize560*450mmConveryor speed0-15m/minShink prouduct sizeL580*W420mmTunnel size1000mConveryor loading20kg MaxConveryor loading15kgMachine size1600*835*1470mmMachine size130*720*880mmMachine weight280kgMachine weight120kgShrink filmPOF.Shrink filmPOF.PVC.PP
- Other
shrinkage furnace size can be customized.
