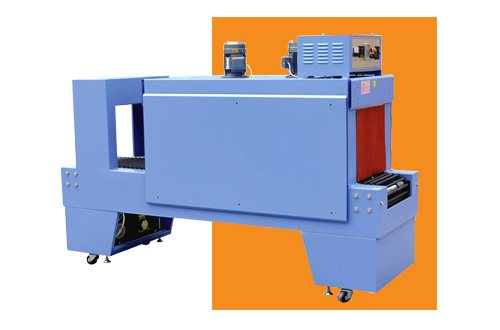

PE shrink tunnel

PE shrink tunnel
[PDF下载]
Features
BSE6040A PE shrink film machineexcellent effect on shrinkage. The machine in addition to continue to circulate in uncovered technology, also increase the furnace length, to ensure that the shrinkage effect is perfect. BSE6040A machine contraction temperature and conveying speed can be adjusted according to the material and thickness of the membrane, to apply to all kinds of shrink film. The machine electrical components adopt famous brand, to ensure that the set of stability and accuracy.
product feature ：
The inner loop heating mode.
Stainless steel heating tube
Prevent iron shell, safe operation
transmission speed is adjustable and shrinking stove temperature controlled
chain conveyor mesh strap conveyor and optional
shrinkage furnace size can be customized
Parameter
Power supply
380－460V/50-60HZ
Heater power
24KW
Converyor speed
0-15m/min
Tunnel size
1800*600*400mm
Shink product size
500*350mm
Converyor loading
25kg
Machine size
2750*840*1500mm
Machine weight
280kg
Shrink film
POF.PVC.PE
Other

shrink age furnace size can be customized
In the circular economy is optional
chain conveyor mesh strap conveyor and optional
