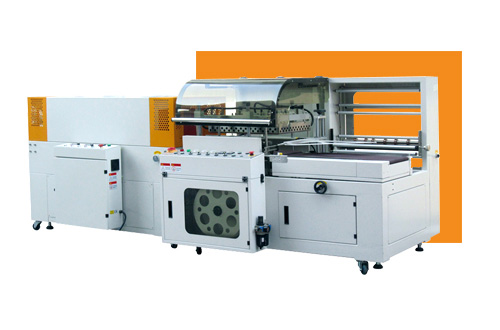

High speed l shrink packing machine

Features

Full automatic L high-speed heat shrink machine cutter is driven by four column vertical system,up and down ,to overcome the traditional L-type sealer restricions on height, max 220 products.the machine can match line to use feed,bag making ,sealing and cutting,contraction in complete,without manual.this machine is a high degree of automation,widely used in printing,color box,greeting CARDS,photo album,photo fram,medicine,electronics,daily chemical industry,such as mass production.
product features:
sealing cutter,driven by a four-column vertical system can overcome the shortcomings of traditional L-type sealer appear crease and the sealing line is not among the product position.
sealing height adjustable can ensure the sealing line in the middle position.
choose suitable for packing height,cutter sealing travel time can be reduce,thus improve the production speed,reduce the cost of production.
using horizontal and vertical two group photoelectric,switch,convenient to thin or small products,can easily finish packing.
automatic program control,simple and convenient operation,safety protection and alarm function.

Parameter

model	edge sealing machine（GPL-5545D）	shrink machine（5030）
power supply	1Φ220V 50/60HZ	3Φ380V 50/60HZ
power	5.5kw	16kw
packaging size	L(no limit)*W+H≤450mm(H≤150)mm	1200*450*250mm
sealing length	520mm	1500*500*300mm
packaging speed	20~60pcs/min	20~60pcs/min
gas source	5.5kg/cm³
max.current	10A	32A
net weight	800kg	650kg
machine size	12050*1580*1740mm	2000*1100*1250mm
applicable film	POF,PVC,PE

Other

shrinkage furnace size can be customized.
